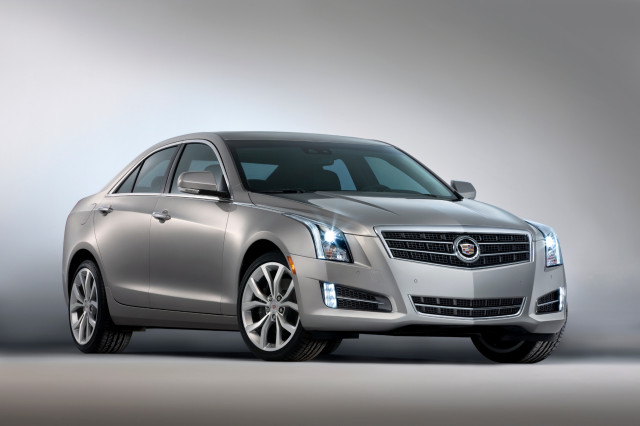

The all-new 2013 Cadillac ATS compact luxury sports sedan is the brand’s entry into the world’s most significant luxury car segment and is designed to challenge the world’s best premium cars. Developed on an all-new, lightweight rear-drive architecture, the ATS reflects a new expression of Cadillac’s Art & Science execution philosophy, centered on a foundation of driving dynamics and mass efficiency. It is the most agile and lightweight Cadillac, with one of the lowest curb weights in the segment – less than 3,400 pounds (1,542 kg). All-wheel drive is available.
- All-new, lightweight, rear-wheel-drive architecture with one of the lowest curb weights in the segment – less than 3,400 pounds (1,542 kg)
- Broad lineup of engines, including two four-cylinders and a V-6 for North America, capitalizes on lightweight structure for performance with efficiency
- Cadillac CUE, a comprehensive, in-vehicle experience that merges intuitive design with auto industry-first controls and commands for information and entertainment data
Contributing components and features include:
- 50/50 weight balance
- Cadillac’s first five-link independent rear suspension using lightweight, high-strength steel and efficient straight link designs
- A multi-link double-pivot MacPherson-strut front suspension with direct-acting stabilizer bar
- Driver-adjustable FE3 sport suspension with Magnetic Ride Control real-time damping
- Underbody aerodynamic shields
- Premium (belt driven) electric variable-effort steering gear from ZF Steering Systems
- Four-channel ABS with available Brembo performance brakes
- Available all-wheel drive.
The ATS is offered as a well-equipped standard model and in Luxury, Performance and Premium collections. A broad lineup of engines – including two four-cylinders and a V-6 for North America – delivers strong power to the ATS and capitalizes on the car’s lightweight structure to complement its performance with efficiency. The optional engines include an all-new 2.0L turbocharged four-cylinder rated at 272 horsepower (203 kW) and Cadillac’s award-winning 3.6L V-6, estimated at 321 horsepower (239 kW).
ATS design and exterior features
The 2013 Cadillac ATS interprets Cadillac’s Art & Science design language in a new proportion, tailoring the signature styling and refinement cues for the most compact Cadillac while upholding – and advancing – the exemplary attention to detail and technological elements for which the brand is known.
A long, 109.3-inch (2,775 mm) wheelbase and wide front/rear tracks are the cornerstones of the ATS’s firmly planted stance, which is enhanced by short overhangs and taut sheet metal that appears to wrap tightly around the tires. Seventeen-inch wheels are standard and 18-inch wheels are available.
High-intensity discharge headlamps with Adaptive Forward Lighting are available on models with the 2.0L turbo and 3.6L V-6 engines.
Exterior colors include: Radiant Silver Metallic, Black Raven, Black Diamond Tricoat, Crystal Red Tintcoat, White Diamond Tricoat, Thunder Gray ChromaFlair, Opulent Blue Metallic, Glacier Blue Metallic, Silver Coast Metallic and Summer Gold Metallic.
ATS interior features
A driver-focused interior with integrated technology and crafted materials complements the exterior elements and supports the ATS’s driving experience. Everything from the placement of the pedals to the position of the shifter is designed for effortless and intuitive performance driving. Available performance seats have power-adjustable bolsters to optimize lateral support during high-load cornering.
Real wood, metal plating and carbon fiber trim and Cadillac’s cut-and-sew instrument panel, console and doors enhance the emotional connection to the ATS. Choices of many interior color themes, each with unique accent trim material, cover a wide range of flavors – from light, open and warm to black and serious, to bold, technical and sporty.
Interior color and trim choices include: Jet Black with Jet Black accents, Morello Red with Jet Black accents, Light Platinum with Brownstone accents, Caramel with Jet Black accents and Light Platinum with Jet Black accents.
Additional interior features include:
- Bluetooth phone connectivity with voice recognition
- USB, auxiliary and SD memory card ports
- SiriusXM Satellite Radio with three-month trial subscription
- Keyless access and keyless push-button start
- Reconfigurable 5.7-inch instrument panel cluster display
- Full-color reconfigurable head-up display
- Leatherette or leather seating surfaces.
ATS powertrains
The engine lineup starts with a standard 2.5L four-cylinder; a 2.0L turbocharged four-cylinder and the V-6 are available. The four-cylinders are next-generation engines, with the 2.0L turbo offered with a manual transmission – a choice that’s unavailable in some luxury cars.
Increased efficiency was a priority for the new four-cylinders. It was achieved partly through lower engine friction, which was reduced by up to 16 percent using new technologies such as a variable-displacement oil pump and, with the 2.5L, an actively controlled thermostat. Cadillac proprietary computational fluid dynamics (CFD) analysis techniques were used to develop an all-new combustion system with a higher compression ratio, which also helps boost efficiency.
The 2.5L is rated at 202 horsepower (151 kW) and 191 lb.-ft. or torque (259 Nm), while the 2.0L turbo – the latest in a series of technologically advanced, high-output turbo engines – is rated at 272 horsepower (203 kW) and 260 lb.-ft. of torque (353 Nm). The award-winning 3.6L V-6 is rated at 321 horsepower (239 kW) and 275 lb.-ft. of torque (373 Nm).
At 136hp/L, the new 2.0L turbo is one of the most power-dense engines in the industry, topping engines from European competitors.
All of the engines feature direct injection and dual overhead camshafts with continuously variable valve timing, which help optimize power and efficiency, as well as reduce emissions. And all of the engines are matched with six-speed transmissions, including the Hydra-Matic 6L45 automatic with tap-shift control, and a six-speed manual available with the turbo engine.
ATS driving experience
Proportion and balance are on the ATS’s side, with a low curb weight of less than 3,400 pounds (1,542 kg) and power-dense powertrains that are also lightweight to achieve a 50/50 weight distribution and a greater power-to-weight ratio. They complement wide front and rear tracks – 59.5-inch/1,512mm (front) and 60-inch/1,548mm (rear) – for a lower center of gravity that promotes greater stability.
At the rear of the ATS is the first five-link independent suspension in a Cadillac. It’s a design that helps reduces roll center motion, enables positive lateral control, reduces “squat” during acceleration and promotes excellent dynamic stability. In short, it helps keep the tires planted on all surfaces and during all hard-cornering maneuvers.
A mechanical limited-slip differential is a feature not matched by all other competitors and gives the ATS an edge when it comes to ensuring all of the powertrain’s torque is applied to the tires during hard cornering. It is standard with the six-speed manual transmission and included with the FE3 sport suspension package. It is housed in a robust 8.6-inch carrier. Other models feature a 7.67-inch carrier.
Four-wheel disc brakes are standard on all models, with Brembo performance brakes available on the standard model and included on the Luxury, Performance and Premium collections. They are matched with a four-channel ABS system that is integrated with standard StabiliTrak stability control and full-function traction control.
ATS safety features
Safety in the ATS is based on Cadillac’s “control and alert” strategy that employs advanced technologies – including radar, cameras and ultrasonic sensors – to help prevent crashes. The safety features bolster driver vision and awareness of road hazards, and intervenes to help the driver avert potential crashes. In some cases, Cadillac’s advanced crash-avoidance systems will act without the driver, such as automatic braking, which will activate based on information indicating potential hazards.
Among the most sophisticated of the features is Fr ont and Rear Automatic Brakes . This relies on short-range radar technology and ultrasonic sensors to help the driver prevent front and rear low-speed collisions via a progression of alerts that extend to complete braking, if necessary.
Optional advanced safety features include:
- Full Speed Range Adaptive Cruise Control
- Intelligent Brake Assist
- Forward Collision Alert
- Brake Pre-Fill Automatic Collision Preparation
- Lane Departure Warning
- Side Blind Zone Alert
- Rear Vision Camera With Dynamic Guidelines
- Adaptive Forward Lighting
- Hill Hold/Start Assist (Standard, manual transmission)
OnStar’s RemoteLink Mobile App allows smartphone users to control vehicle functions, access vehicle information and send directions directly to the vehicle. A new, opt-in service called FamilyLink allows subscribers to stay connected to loved ones by checking the location of their vehicle online or by signing up for vehicle location alerts.
